Bikes from LEM Motorcycles
BC Racing has the new 2007 LEM RX50 and RX65! You can find all the specs below. Be sure to call us at (636) 394-5263 with any questions you
might have.
View Larger Version |

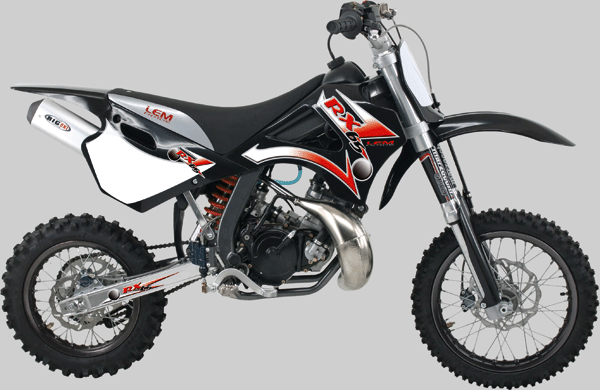

2007 LEM RX65
| Engine Type |
Two Stroke Mono-Cylinder Morin 65-SM Liquid Cooled |
| Cylinder |
Aluminum |
| Intake |
4 Petal Carbon Fiber Reed Valve |
| Exhaust |
Expansion with Silencer |
| Bore Stroke |
1.75 x 1,64" |
| Displacement |
64,93 cc |
| Horse Power |
17.4 HP at 12,500 RPM |
| Transmission |
6 speed gear and hydraulic clutch |
| Transmission |
6 Speed |
| Oil Capacity and Type |
1.32 Pounds Type SAE 15W/50 |
| Primary Drive |
Straight Teeth Gears |
| Gear Ratio |
1st 1:3,636 - 2nd1:2,466 - 3rd1;1,889 - 4th 1:1,5 - 5th 1;1,217 - 6th 1:1,08 |
| Final Drive |
Chain 420 Tension Roller 0.3” DID |
| Spark Plug |
Champion C53ST |
| Alimentation |
2% Mixture |
| Fuel Capacity |
0.53 gal. |
| Carb |
Dell'orto PHBL 24 BS |
| Main Jet |
MIN. 50 STARTER 60 MAX. 106 |
| Ignition |
Electronic with micro processor |
| Timing Spec S |
Fixed Air Gap (Fixed Air Core) 0.3 Second |
| Frame Type |
Steel tubes with aluminium swing-armi brake pedal and rear body. |
| Forks |
Hydraulic Front Fork Upside Down Ø35 |
| Fork Run |
8.66" |
| Front Brake |
Disc Brake Ø220 |
| Front Tire |
60/100 x 14" ALLUMINUM RIM |
| Shock Absorber |
Hydraulic Monoshock |
| Monoshock Travel |
1.89” |
| Rear Brake |
Disc Brake |
| Rear Tire |
80/100 x 12" Aluminum Rim |
| Seat Height |
28.7” |
| Wheel Base |
43.9” |
| Ground Clerance |
9.8" |
| Tip to Tip Length |
62.6” |
| Weight |
124 lbs. |
| Rims |
Spoke Wheels |
| Cylinder Head Torque Spec S |
1,4 / 1,6 Kgm 14 / 16 N/m |
|
View Larger Version |
2007 LEM RX3
| Engine Type |
Two Stroke Mono-Cylinder Morin S6-C Liquid Cooled |
| Cylinder |
Aluminum |
| Intake |
4 Petal Carbon Fiber Reed Valve |
| Exhaust |
Expansion with Silencer |
| Bore Stroke |
1.54 x 1.65" |
| Displacement |
49.8 CC |
| Horse Power |
12.8 HP at 13,500 RPM |
| Transmission |
Single Speed with Adjustable Centrifugal Wet Clutch |
| Transmission |
Single Speed |
| Oil Capacity and Type |
0.66 Pounds Type SAE 10W or 10W/50W Multigrade |
| Primary Drive |
Straight Teeth Gears |
| Gear Ratio |
01:04.2 |
| Final Drive |
Chain 1/2 x 3/16" Tension Roller 0.3 DID |
| Spark Plug |
Champion C53ST |
| Alimentation |
3% Mixture |
| Fuel Capacity |
0.53 gal. |
| Carb |
Dell'orto PHBG 19 BS |
| Main Jet |
MIN. 48 STARTER 60 MAX. 96 |
| Ignition |
Electronic with micro processor |
| Timing Spec S |
Fixed Air Gap (Fixed Air Core) 0.3 Second |
| Frame Type |
Steel tubes with aluminium swing-armi brake pedal and rear body. |
| Forks |
Hydraulic Front Fork with Aluminum Triple Clamp |
| Fork Run |
7.28" |
| Front Brake |
Disc Brake |
| Front Tire |
2.50 x 12" Aluminum Rim |
| Shock Absorber |
Hydraulic Monoshock |
| Monoshock Travel |
1.89” |
| Rear Brake |
Disc Brake |
| Rear Tire |
2.75 x 10" Aluminum Rim |
| Seat Height |
26.57" |
| Wheel Base |
38.78" |
| Ground Clearance |
10.63" |
| Tip to Tip Length |
53.54" |
| Weight |
92.59 lbs. |
| Rims |
Spoke Wheels |
| Cylinder Head Torque Spec S |
1,4 / 1,6 Kgm 14 / 16 N/m |
|
